For each of the DNA Products that will be receiving orders from PayPro, you will need to:

• create a DNA Connector
• add PayPro Product ID(s) to the DNA Connector

Adding the DNA Connector for PayPro

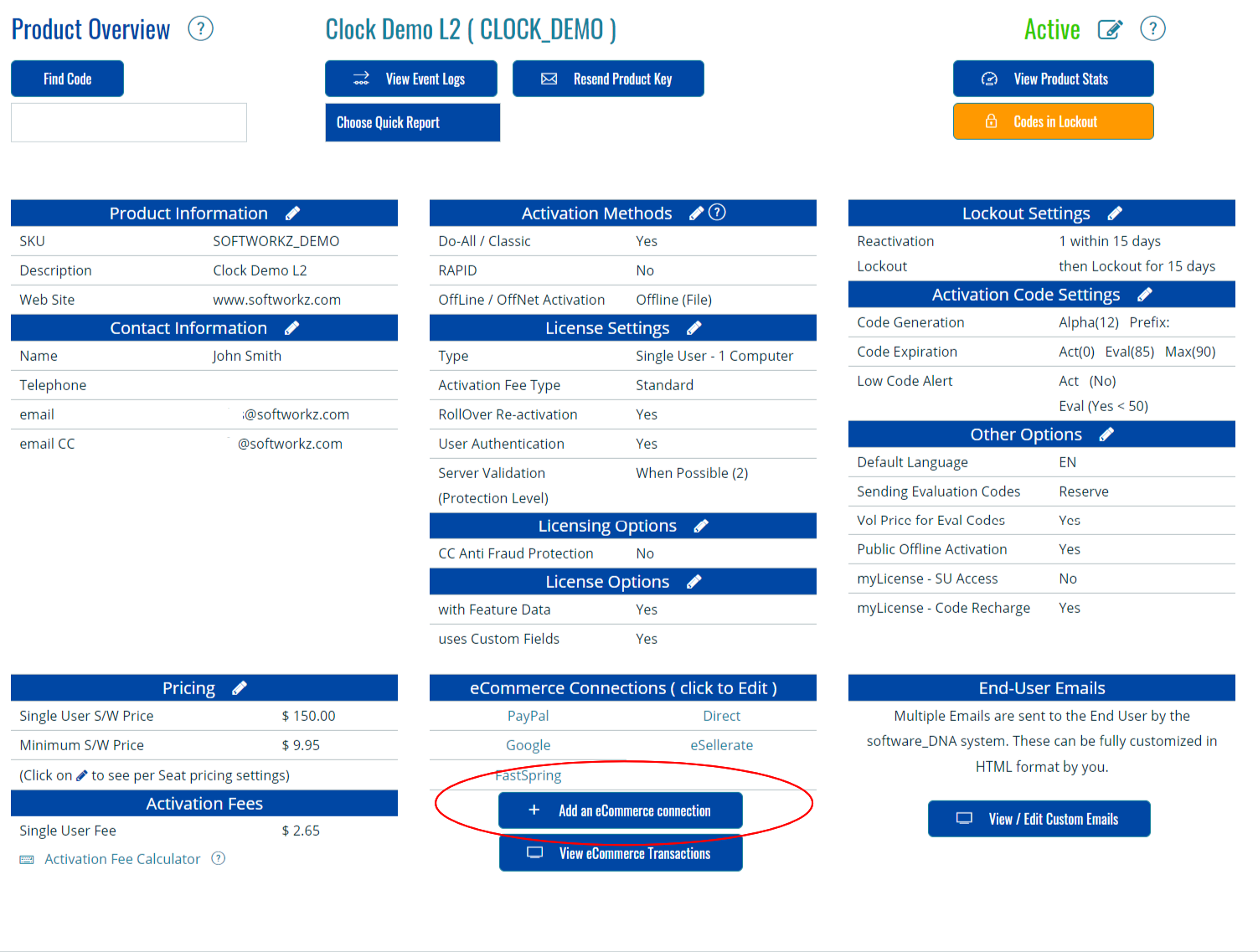

To create the DNA Connector for a given DNA Product:

1. from the DNA Control Panel, select the specific product and scroll down to the eCommerce Connection section



2. If this is the first time you are setting up for integration with PayPro, click on + Add an eCommerce Connection and choose the eCommerce System PayPro from the scroll down menu.
   If the PayPro integration is already set-up, click on PayPro to go to the PayPro Connector Configuration screen.

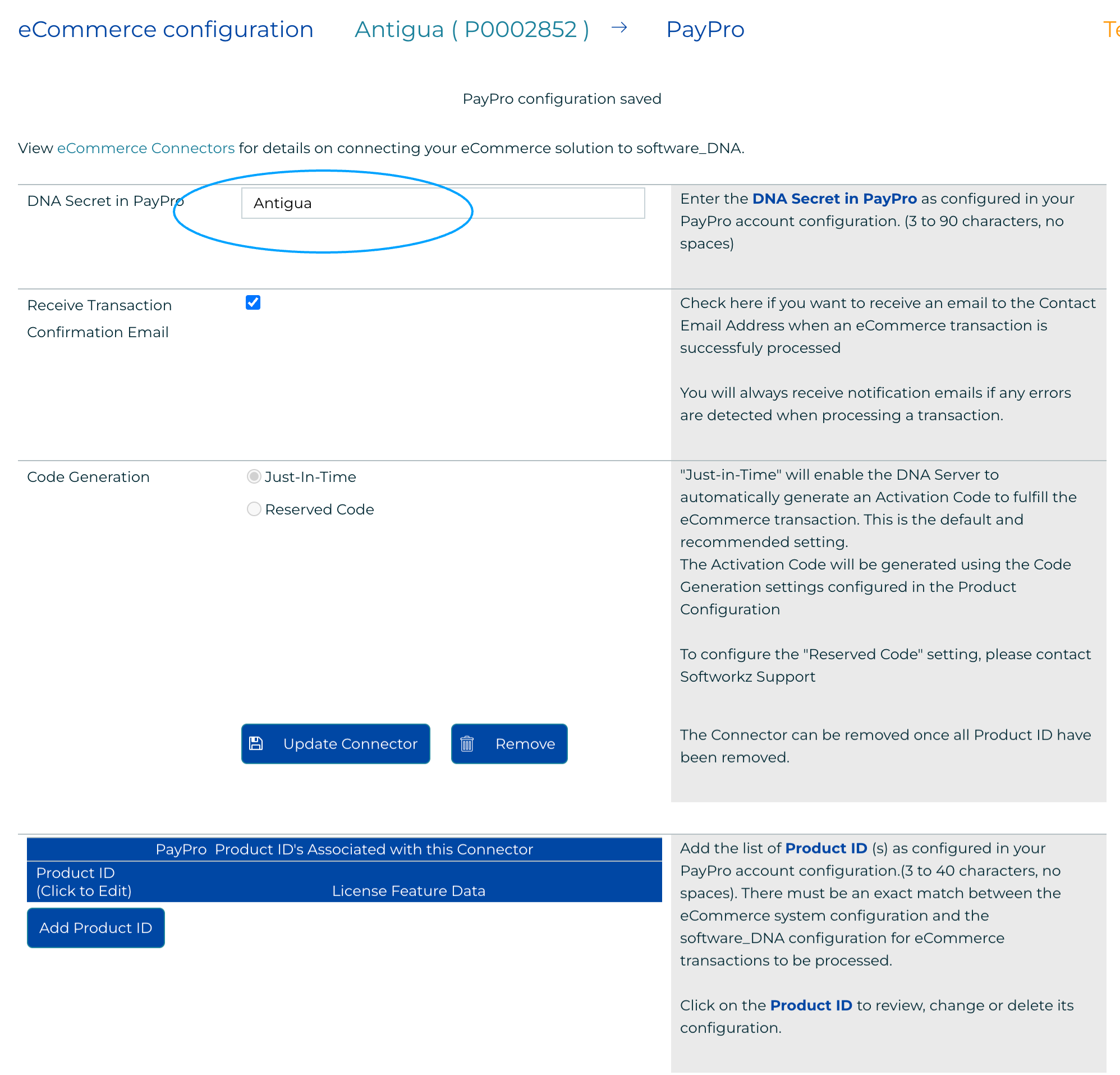

3. in the PayPro Connector Configuration screen, configure the following options:


   PayPro DNA Secret	enter the <dna_secret> you created in PayPro
   Confirmation Email	If you would like to be notified of each PayPro transaction processed by software_DNA, select the Receive Transaction Confirmation Email option. software_DNA will send an email to the Product_Contact person for this product with key information taken from the transaction.
   License Fulfillment	Choose from two License activation code options: Immediate - "Just in Time" Recommended The DNA Server will create a new License Activation Code for this Product, reserve it and send it to the Buyer. The License Code will be generated using the Code Length and Code Type specified in the Product configuration. Reserve You will UPLOAD or GENERATE codes. The DNA Server will reserve the next available License Activation Code for this Product and send it to the Buyer. You will need to request this option by sending an email to Tech Support.



4. Click on Create Connector (or Update Connector if you are modifying an existing configuration) to save the Connector configuration.

   Once created, the Add Product ID button will appear, and you will need to configure each PayPro Product ID associated with this DNA Product as shown in the next section.

Adding PayPro Product ID’s to the DNA Connector

For each PayPro Product ID that will use this DNA Product, you will add a ID Configuration as follows:

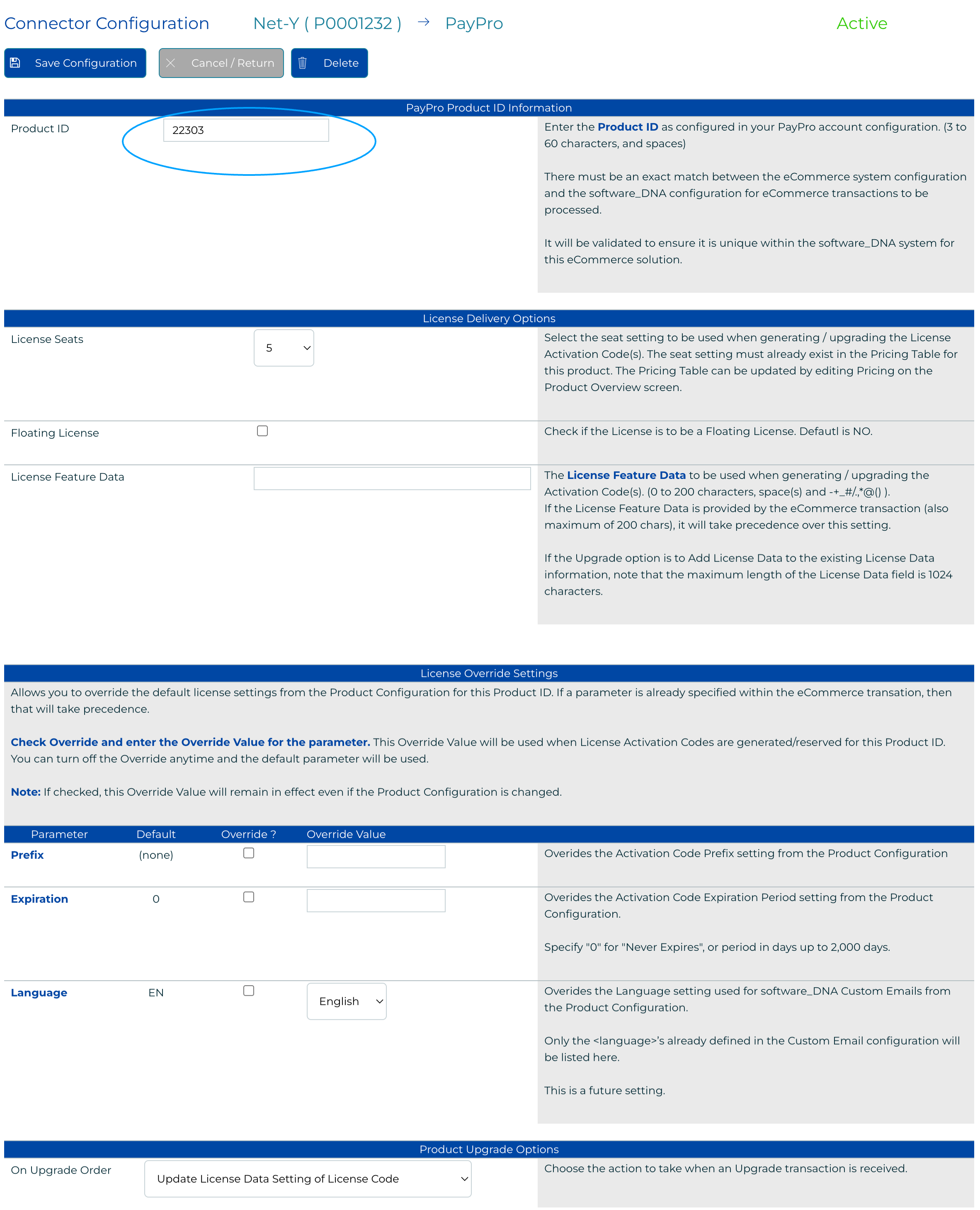

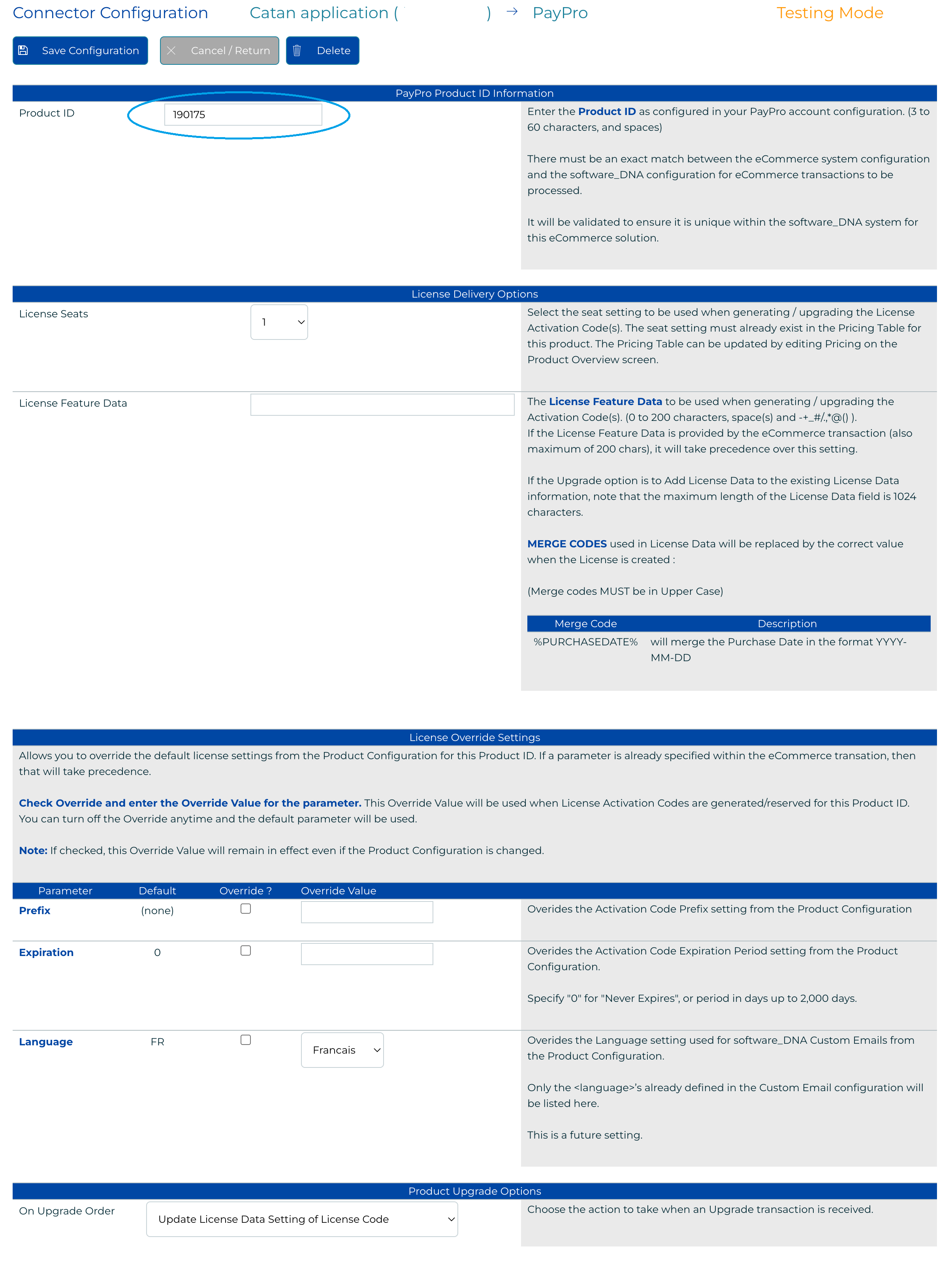

1. From the PayPro Connector Configuration screen, click on ADD Product ID, or click on an existing Product ID, to bring up the ID Configuration screen:



2. Enter the PayPro Product ID for this product / subscription.

Up to 25 Product ID’s can be configured per DNA Connector

3. If you have defined multi-user licenses in your Product Configuration, select the <License Seats> that will be used when generating the License Activation Code for this Product ID.

4. If you use Feature-based licensing, enter the default <license_data> that will be used when generating the License Activation Code for this Product ID (this field will not appear if you have not enabled this option).

5. If required, you can specify Override settings for this specific PayPro Product ID. Override settings will be used instead of the Default DNA Product configuration settings when generating the License Code for this transaction:

   • Check the Override Checkbox for the override setting to be used
   • The Prefix will override the <Prefix> setting of the DNA Product
   • The Expiration Period will override the setting of the DNA Product
   • The Language will override the setting of the DNA Product

6. Click on SAVE to save this PayPro Product ID configuration

The UserPurchaseDate, License Activation Code, Buyer Email , the PayPro Transaction ID and Subscription ID are stored and available for viewing in the License View screen or for download from the DNA Control Panel under the menu Reports.

The PayPro External License Generator and IPN posts provide many other information items not required by the DNA Server. This information will not be stored by the DNA Server and will not be available once the request has been processed.

You can retrieve the complete transaction information directly from your PayPro account at any time. Please consult the PayPro web site for these options.
